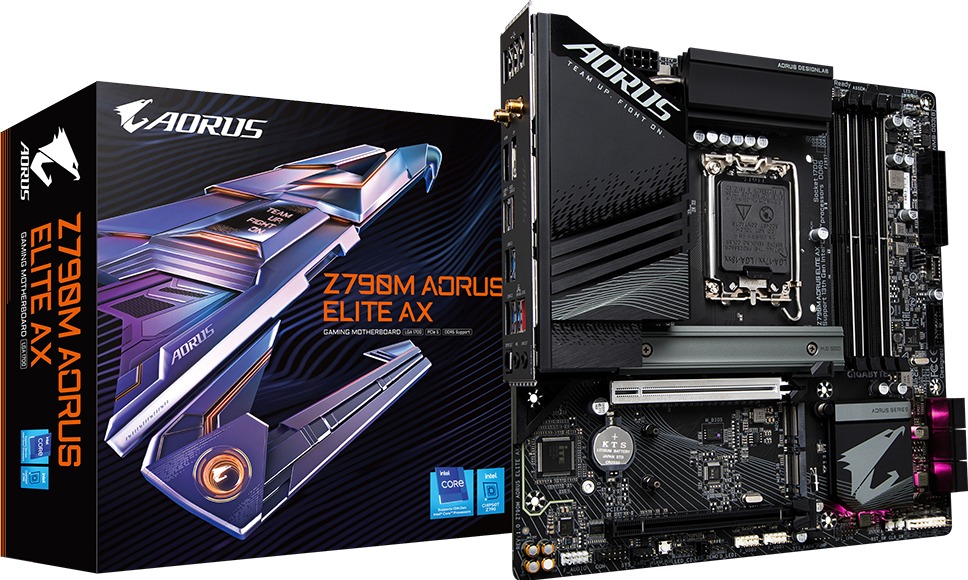

Mainboard Gigabyte Z790M AORUS ELITE AX DDR5 (Wifi+Bluetooth)
Mainboard Gigabyte Z790M AORUS ELITE AX DDR5 (Wifi+Bluetooth) là linh kiện chính hãng, phù hợp lắp ráp và nâng cấp máy tính văn phòng, đồ họa, gaming. Dùng công cụ Build PC của DTIC để kiểm tra tương thích với các linh kiện khác.
Thông số kỹ thuật
| Sản phẩm | Bo mạch chủ |
|---|---|
| Tên Hãng | Gigabyte |
| Model | Z790M AORUS ELITE AX DDR5 |
| CPU hỗ trợ | Intel |
| Chipset | Z790 |
| RAM hỗ trợ | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR DIMM sockets supporting |
| Khe cắm mở rộng | CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:1 x PCI Express x16 slot, |
| Ổ cứng hỗ trợ | CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x |
| Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip h |
| Cổng kết nối (Back Panel) | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI 2.0 port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector |
| LAN / Wireless | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel® Wi-Fi 6E AX211WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Kích cỡ | Micro ATX Form Factor; 24.4cm x 24.4cm |
Vì sao mua tại DTIC?
- Hàng chính hãng, đầy đủ hóa đơn VAT.
- Lắp ráp, cài đặt và test máy miễn phí khi mua trọn bộ cấu hình.
- Bảo hành chính hãng, hỗ trợ kỹ thuật tận nơi tại Hà Nội.
Giá tham khảo thị trường, có thể thay đổi theo thời điểm. Hotline/Zalo 0913.745.698.
